无刷直流电机BLDC(Brushless Direct Current Motor)，其既具有直流电机良好的调速性能，又具有交流电机结构简单、无换向火花、运行可靠和易于维护等优点。无刷直流电机的实质是直流电源输入，采用电子逆变器将直流电转换为交流电，有转子位置反馈的三相交流永磁同步电机。
无刷直流电机具有广泛的应用领域，如电动工具、风机、吸尘器、电风扇、电动自行车、电动汽车等。

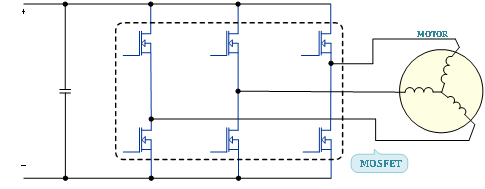

无锡商甲半导体多款MOSFET，可广泛应用于BLDC中，具有如下特点：
1. 低导通电阻，低栅极电荷，保证良好的温升效果；
2. 优秀的抗雪崩能力，可以承受感性负载的能量冲击；
3. 优秀的反向续流能力，有效吸收电机负载的续电流；
4. 参数一致性好，针对大功率场景，支持多管并联；
5. 高可靠性，满足多场景终端的应用环境。
| 应用电压平台 | Product Name | Technology | Package | Configuration | ESD | VDS_Max (V) | ID_Max(A) | VGS(th)_Typ (V) | VGS_Max(V) | RDSON(mΩ)@VGS=10V | RDSON(mΩ)@VGS=4.5V | Status | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Typ | Max | Typ | Max | |||||||||||
| 12V电池 | SJD30N036 | Trench | TO-252 | N | NO | 30 | 90 | 1.6 | ±20 | 3.6 | 5.0 | 5.0 | 7.5 | Active* |
| SJH30N030 | Trench | PDFN5X6-8L | N | NO | 30 | 100 | 1.5 | ±20 | 2.8 | 3.5 | 5.0 | 6.5 | Active | |
| SJD30N015 | Trench | TO-252 | N | NO | 30 | 139 | 1.7 | ±20 | 2.3 | 3.0 | 3.3 | 4.3 | Active | |
| 24V电池 | SJD40N058 | Trench | TO-252 | N | NO | 40 | 57 | 1.7 | ±20 | 6.7 | 8.7 | 7.9 | 10.3 | Active* |
| SJH40N045 | Trench | PDFN5X6-8L | N | NO | 40 | 60 | 1.7 | ±20 | 4.5 | 5.4 | 8.0 | 10.4 | Active | |
| SJD40N042 | Trench | TO-252 | N | NO | 40 | 96 | 1.6 | ±20 | 3.9 | 5.1 | 5.0 | 6.6 | Active | |
| SJH40N022 | Trench | PDFN5X6-8L | N | NO | 40 | 107 | 1.7 | ±20 | 2.2 | 2.9 | 3.3 | 4.4 | Active | |
| SJJ40N015 | Trench | TO-263 | N | NO | 40 | 200 | 1.7 | ±20 | 1.8 | 2.3 | 2.3 | 3.5 | Active** | |
| SJH023N04 | SGT | PDFN5X6-8L | N | NO | 40 | 100 | 1.6 | ±20 | 2.3 | 3.2 | 3.0 | 4.0 | Active** | |
| SJH015N04H | SGT | PDFN5X6-8L | N | NO | 40 | 180 | 2.7 | ±20 | 1.5 | 2.0 | Active* | |||
| SJJ010N04 | SGT | TO-263 | N | NO | 40 | 400 | 2.7 | ±20 | 0.9 | 1.2 | Active* | |||
| 36V电池 | SJD60N075 | Trench | TO-252 | N | NO | 60 | 70 | 1.8 | ±20 | 7.5 | 9.4 | 9.2 | 13.0 | Active |
| SJ60N063H | Trench | TO-220 | N | NO | 60 | 80 | 2.8 | ±20 | 7.0 | 9.0 | Active* | |||
| SJ070N06 | SGT | TO-220 | N | NO | 65 | 107 | 2.8 | ±20 | 6.2 | 8.1 | Active* | |||
| SJJ025N06 | SGT | TO-263 | N | NO | 60 | 200 | 2.8 | ±20 | 2.8 | 3.6 | Active** | |||
| SJH015N06H | SGT | PDFN5X6-8L | N | NO | 60 | 250 | 2.8 | ±20 | 1.6 | 2.1 | Active** | |||
| SJ010N06 | SGT | TO-220 | N | NO | 60 | 350 | 3 | ±20 | 1.2 | 1.5 | Active** | |||
| 48V电池 | SJ60N045 | Trench | TO-220 | N | NO | 68 | 91 | 2.8 | ±20 | 5.4 | 6.5 | Active | ||
| SJ60N035 | Trench | TO-220 | N | NO | 68 | 150 | 2.8 | ±20 | 3.5 | 4.8 | Active** | |||
| SJ80N075 | Trench | TO-220 | N | NO | 85 | 90 | 2.8 | ±20 | 7.3 | 8.7 | Active | |||
| SJJ80N050 | Trench | TO-263 | N | NO | 85 | 120 | 2.8 | ±20 | 4.8 | 6.0 | Active** | |||
| SJ020N085 | SGT | TO-220 | N | NO | 85 | 260 | 2.8 | ±20 | 2.4 | 3.2 | Active* | |||
| SJ013N085 | SGT | TO-220 | N | NO | 85 | 320 | 2.8 | ±20 | 1.5 | 2.0 | Active** | |||
| 72V电池 | SJD01N088 | Trench | TO-252 | N | NO | 100 | 80 | 2.8 | ±20 | 9.0 | 12.0 | Active** | ||
| SJJ01N060 | Trench | TO-263 | N | NO | 100 | 120 | 2.8 | ±20 | 6.0 | 8.0 | Active** | |||
| SJ045N10 | SGT | TO-220 | N | NO | 100 | 138 | 3 | ±20 | 4.6 | 6.0 | Active* | |||
| SJ035N10 | SGT | TO-220 | N | NO | 100 | 127 | 3 | ±20 | 4.2 | 5.5 | Active | |||
| SJ018N10 | SGT | TO-220 | N | NO | 100 | 220 | 3 | ±20 | 1.8 | 2.4 | Active** | |||
| 96V电池 | SJ015N093 | Trench | TO-220 | N | NO | 150 | 92 | 4 | ±20 | 10.3 | 13.7 | Active | ||
| SJT015N050 | Trench | TO-247 | N | NO | 150 | 170 | 4 | ±20 | 5.0 | 6.5 | Active** | |||
| SJ090N15 | SGT | TO-220 | N | NO | 150 | 80 | 3 | ±20 | 10.0 | 13.0 | Active* | |||
| SJ055N15 | SGT | TO-220 | N | NO | 150 | 152 | 3 | ±20 | 5.6 | 6.6 | Active | |||
| SJT038N15 | SGT | TO-247 | N | NO | 150 | 200 | 3 | ±20 | 4.0 | 6.0 | Active** | |||
| 144V电池 | SJ090N20 | SGT | TO-220 | N | NO | 200 | 100 | 3.2 | ±20 | 9.0 | 12.0 | Active** | ||
| SJJ090N20 | SGT | TO-263 | N | NO | 200 | 100 | 3.2 | ±20 | 9.0 | 12.0 | Active** | |||
