PD快充（Power Delivery）是USB连接器中的一种最新的快速充电技术，在使用期间具有唤醒、智能协商、安全设置及实时监控功能，将充电过程中实现更低的损耗、更高的效率、更安全的功率传输。
PD快充是目前最完善的快充协议，最大支持功率可以达到100W以上，目前常见功率是18W，30W，45W，60/65W等，常见应用领域包括：手机快充、笔记本快充、平板快充、通讯电源、车载充电等。

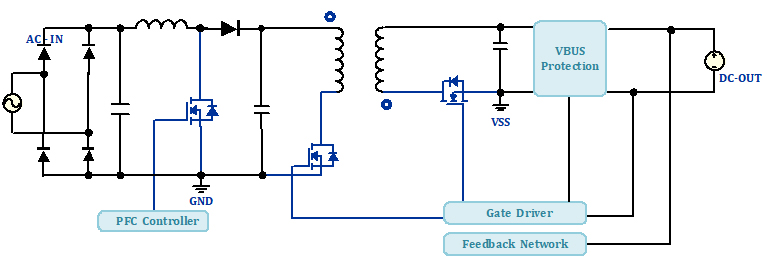

其典型的电路拓扑如下：
功率MOSFET作为PD快充的核心原件，在功率转换过程中发挥着重要的作用，无锡商甲半导体可以提供完善的PD快充MOSFET解决方案。
高压PFC& Flyback 采用650V SJ MOSFET G1系列产品，具备低导通内阻，低Rg和低电容的特性，能更大限度的降低功率损耗，提升电源转换效率；
同步整流MOSFET选用商甲半导体中压SGT系列产品，产品内阻低，栅电荷低，能满足同步整流电路高频大电流的要求；
Vbus部分采用30VN/30VP Trench MOSFET系列产品，产品性能表现优秀，封装形式涵盖TO-252、PDFN3X3-8L、PDFN5X6-8L等多种形式，选用灵活，性价比高。
| 应用模块 | Product Name | Technology | Package | Configuration | ESD | VDS_Max (V) | ID_Max(A) | VGS(th)_Typ (V) | VGS_Max(V) | RDSON(mΩ)@VGS=10V | RDSON(mΩ)@VGS=4.5V | RDSON(mΩ)@VGS=2.5V | Status | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Typ | Max | Typ | Max | Typ | Max | |||||||||||
| SR | SJM100N06 | SGT | PDFN3X3-8L | N | NO | 60 | 20 | 1.6 | ±20 | 10.0 | 13.0 | 13.0 | 18.0 | Active* | ||
| SJH075N06 | SGT | PDFN5X6-8L | N | NO | 60 | 40 | 1.6 | ±20 | 7.5 | 9.5 | 9.5 | 12.0 | Active** | |||
| SJH042N06 | SGT | PDFN5X6-8L | N | NO | 60 | 88 | 1.8 | ±20 | 4.7 | 6.2 | 6.8 | 9.0 | Active* | |||
| SJJ025N06 | SGT | TO-263 | N | NO | 60 | 200 | 2.8 | ±20 | 2.8 | 3.6 | Active** | |||||
| SJD150N10 | SGT | TO-252 | N | NO | 100 | 40.0 | 1.9 | ±20 | 21.0 | 27.0 | 27.0 | 38.0 | Active** | |||
| SJH080N10 | SGT | PDFN5X6-8L | N | NO | 100 | 80 | 2 | ±20 | 7.5 | 9.0 | 9.0 | 12.0 | Active* | |||
| SJD080N10 | SGT | TO-252 | N | NO | 100 | 80 | 2 | ±20 | 8.0 | 9.5 | 10.0 | 13.0 | Active* | |||
| SJH045N10L | SGT | PDFN5X6-8L | N | NO | 100 | 120 | 2 | ±20 | 4.0 | 5.5 | 5.2 | 8.0 | Active* | |||
| SJD045N10L | SGT | TO-252 | N | NO | 100 | 120 | 2 | ±20 | 4.5 | 5.4 | 5.8 | 8.0 | Active* | |||
| SJH090N15 | SGT | PDFN5X6-8L | N | NO | 150 | 80.0 | 3 | ±20 | 9.0 | 12.0 | Active* | |||||
| SJ090N15 | SGT | TO-220 | N | NO | 150 | 80.0 | 3 | ±20 | 10.0 | 13.0 | Active* | |||||
| SJJ090N15 | SGT | TO-263 | N | NO | 150 | 80.0 | 3 | ±20 | 9.5 | 13.0 | Active* | |||||
| SJJ055N15 | SGT | TO-263 | N | NO | 150 | 152 | 3 | ±20 | 5.6 | 6.6 | Active | |||||
| PFC Flyback | SJD65R1350 | SJ | TO-252 | N | NO | 650 | 4 | 4 | ±20 | 1100.0 | 1350.0 | Active* | ||||
| SJF65R1350 | SJ | TO-220F | N | NO | 650 | 4 | 4 | ±20 | 1100.0 | 1350.0 | Active* | |||||
| SJF65R380 | SJ | TO-252 | N | NO | 650 | 10 | 4 | ±20 | 300.0 | 380.0 | Active** | |||||
| SJF65R380 | SJ | TO-220F | N | NO | 650 | 10 | 4 | ±20 | 300.0 | 380.0 | Active** | |||||
| SJF65R130 | SJ | TO-220F | N | NO | 650 | 25 | 4 | ±20 | 100.0 | 130.0 | Active** | |||||
| Vbus | SJD30N055 | Trench | TO-252 | N | NO | 30 | 50 | 1.5 | ±20 | 5.5 | 7.0 | 7.5 | 9.7 | Active | ||
| SJM30N050 | Trench | PDFN3X3-8L | N | NO | 30 | 60 | 1.6 | ±20 | 5.0 | 6.5 | 6.4 | 9.0 | Active** | |||
| SJD30N036 | Trench | TO-252 | N | NO | 30 | 90 | 1.6 | ±20 | 3.6 | 5.0 | 5.0 | 7.5 | Active* | |||
| SJM30N036 | Trench | PDFN3X3-8L | N | NO | 30 | 80 | 1.6 | ±20 | 3.6 | 5.0 | 5.0 | 7.5 | Active* | |||
| SJM30N030 | Trench | PDFN3X3-8L | N | NO | 30 | 61 | 1.5 | ±20 | 3.2 | 3.9 | 5.2 | 6.8 | Active | |||
| SJD30N030 | Trench | TO-252 | N | NO | 30 | 109 | 1.5 | ±20 | 3.0 | 3.6 | 5.0 | 6.5 | Active | |||
| SJH30N025 | Trench | PDFN5X6-8L | N | NO | 30 | 89 | 1.6 | ±20 | 2.5 | 3.1 | 3.5 | 4.6 | Active | |||
| SJM30N025 | Trench | PDFN3X3-8L | N | NO | 30 | 75 | 1.6 | ±20 | 2.6 | 3.2 | 3.5 | 5.0 | Active | |||
| SJM30P055 | Trench | PDFN3X3-8L | P | NO | -30 | -44 | -1.5 | ±20 | 6.0 | 7.8 | 9.7 | 13.0 | Active | |||
| SJD30P043 | Trench | TO-252 | P | NO | -30 | -88 | -1.7 | ±20 | 5.4 | 7.0 | 7.3 | 9.7 | Active | |||
