逆变电路（Inverter Circuit）是与整流电路（Rectifier）相对应的，当需要把蓄电池、干电池、太阳能电池等直流电源转换成交流负载供电时，就需要逆变电路；交流电机调速变频器、不间断电源UPS、感应加热电源等装置的核心部分也是逆变电路原理。
逆变电路可用于构成各种交流电源，在工业中得到广泛应用，比如车载逆变器、便携式储能逆变、光伏微逆变系统、UPS等。

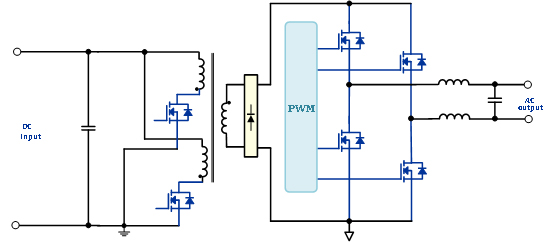

常见的逆变电路通常包括升压和逆变两部分，典型电路拓扑如下图所示：
无锡商甲半导体多款MOSFET&IGBT产品，可广泛应用于逆变电路中，具有如下特点：
1. 低导通电阻和栅极电荷，满足高频、大电流需求
2. 强抗冲击能力，有效吸收负载端的电压或电流脉冲冲击；
3. 参数一致性好，满足多管并联应用场景需求；
4. 高可靠性，工业级入门标准，适应各种终端应用环境；
| 应用模块 | Product Name | Technology | Package | Configuration | ESD | VDS_Max (V) | ID_Max(A) | VGS(th)_Typ (V) | VGS_Max(V) | RDSON(mΩ)@VGS=10V | RDSON(mΩ)@VGS=4.5V | RDSON(mΩ)@VGS=2.5V | Status | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Typ | Max | Typ | Max | Typ | Max | |||||||||||
| 升压 | SJD045N04 | SGT | TO-252 | N | NO | 40 | 75 | 1.6 | ±20 | 5.2 | 6.5 | 6.7 | 10.0 | Active** | ||
| SJH023N04 | SGT | PDFN5X6-8L | N | NO | 40 | 100 | 1.6 | ±20 | 2.3 | 3.2 | 3.0 | 4.0 | Active** | |||
| SJD015N04 | SGT | TO-252 | N | NO | 40 | 180 | 1.6 | ±20 | 1.7 | 2.2 | 2.4 | 3.3 | Active* | |||
| SJH015N04H | SGT | PDFN5X6-8L | N | NO | 40 | 180 | 2.7 | ±20 | 1.5 | 2.0 | Active* | |||||
| SJH009N04 | SGT | PDFN5X6-8L | N | NO | 40 | 200 | 1.6 | ±20 | 0.9 | 1.2 | 1.2 | 1.7 | Active** | |||
| SJM075N06 | SGT | PDFN3X3-8L | N | NO | 60 | 30 | 1.6 | ±20 | 7.5 | 9.5 | 9.5 | 12.0 | Active** | |||
| SJD075N06 | SGT | TO-252 | N | NO | 60 | 40 | 1.6 | ±20 | 8.0 | 10.0 | 9.5 | 12.0 | Active** | |||
| SJH042N06 | SGT | PDFN5X6-8L | N | NO | 60 | 88 | 1.8 | ±20 | 4.7 | 6.2 | 6.8 | 9.0 | Active* | |||
| SJM042N06 | SGT | PDFN3X3-8L | N | NO | 60 | 60 | 1.8 | ±20 | 4.8 | 6.0 | 7.0 | 10.0 | Active* | |||
| SJJ025N06 | SGT | TO-263 | N | NO | 60 | 200 | 2.8 | ±20 | 2.8 | 3.6 | Active** | |||||
| SJH015N06 | SGT | PDFN5X6-8L | N | NO | 60 | 250 | 1.8 | ±20 | 1.5 | 2.0 | 1.8 | 2.5 | Active* | |||
| SJH020N085 | SGT | PDFN5X6-8L | N | NO | 85 | 260 | 2.8 | ±20 | 2.0 | 2.8 | Active* | |||||
| SJD020N085 | SGT | TO-252 | N | NO | 85 | 250 | 2.8 | ±20 | 2.2 | 3.0 | Active* | |||||
| SJJ013N085 | SGT | TO-263 | N | NO | 85 | 320 | 2.8 | ±20 | 1.3 | 1.6 | Active** | |||||
| SJZ011N085 | SGT | TOLL | N | NO | 85 | 400 | 2.8 | ±20 | 0.8 | 1.2 | Active** | |||||
| SJH080N10 | SGT | PDFN5X6-8L | N | NO | 100 | 80 | 2 | ±20 | 7.5 | 9.0 | 9.0 | 12.0 | Active* | |||
| SJH045N10L | SGT | PDFN5X6-8L | N | NO | 100 | 120 | 2 | ±20 | 4.0 | 5.5 | 5.2 | 8.0 | Active* | |||
| SJD045N10L | SGT | TO-252 | N | NO | 100 | 120 | 2 | ±20 | 4.5 | 5.4 | 5.8 | 8.0 | Active* | |||
| SJJ035N10 | SGT | TO-263 | N | NO | 100 | 127 | 3 | ±20 | 4.2 | 5.5 | Active | |||||
| SJJ018N10 | SGT | TO-263 | N | NO | 100 | 220 | 3 | ±20 | 1.5 | 2.0 | Active** | |||||
| SJM400N15 | SGT | PDFN3X3-8L | N | NO | 150 | 12.0 | 3 | ±20 | 42.0 | 58.0 | Active** | |||||
| SJH090N15 | SGT | PDFN5X6-8L | N | NO | 150 | 80.0 | 3 | ±20 | 9.0 | 12.0 | Active* | |||||
| SJJ090N15 | SGT | TO-263 | N | NO | 150 | 80.0 | 3 | ±20 | 9.5 | 13.0 | Active* | |||||
| 逆变 | SJF65R380 | SJ | TO-252 | N | NO | 650 | 10 | 4 | ±20 | 300.0 | 380.0 | Active** | ||||
| SJF65R380 | SJ | TO-220F | N | NO | 650 | 10 | 4 | ±20 | 300.0 | 380.0 | Active** | |||||
| SJF65R130 | SJ | TO-220F | N | NO | 650 | 25 | 4 | ±20 | 100.0 | 130.0 | Active** | |||||
| SJ65R130 | SJ | TO-220 | N | NO | 650 | 25 | 4 | ±20 | 100.0 | 130.0 | Active** | |||||
| SJF65R095 | SJ | TO-220F | N | NO | 650 | 30 | 4 | ±20 | 75.0 | 95.0 | Active** | |||||
| SJ65R095 | SJ | TO-220 | N | NO | 650 | 30 | 4 | ±20 | 75.0 | 95.0 | Active** | |||||
| SJJ65R095 | SJ | TO-263 | N | NO | 650 | 30 | 4 | ±20 | 75.0 | 95.0 | Active** | |||||
| SJT65R095 | SJ | TO-247 | N | NO | 650 | 30 | 4 | ±20 | 75.0 | 95.0 | Active** | |||||
| SJT65R068 | SJ | TO-247 | N | NO | 650 | 40 | 4 | ±20 | 50.0 | 68.0 | Active** | |||||
| SJT65R038 | SJ | TO-247 | N | NO | 650 | 70 | 4 | ±20 | 30.0 | 38.0 | Active** | |||||
| SJT65R035 | SJ | TO-247 | N | NO | 650 | 80 | 4 | ±20 | 25.0 | 35.0 | Active** | |||||
| 应用模块 | Part Number | Technology | Package | V(BR)CES (V) | IC(A) | PD(W) | VGE(V) | VTH_Typ(V) | VCE(sat)(V)@VGE=15V, 25℃ | Status | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 100℃ | 25℃ | Typ | Max | ||||||||
| 逆变 | SJ15TD65H | IGBT | TO-220 | 650 | 15 | 125 | ±30 | 5 | 1.7 | 1.9 | Active** |
| SJT40TD65H | IGBT | TO-247 | 650 | 40 | 285 | ±30 | 5 | 1.7 | 1.9 | Active** | |
| SJT60TD65H | IGBT | TO-247 | 650 | 60 | 320 | ±30 | 5 | 1.7 | 1.9 | Active** | |
| SJ15TD120H | IGBT | TO-220 | 1200 | 15 | 300 | ±30 | 5 | 1.55 | 1.8 | Active** | |
| SJT25TD120H | IGBT | TO-247 | 1200 | 25 | 350 | ±30 | 5 | 1.55 | 1.8 | Active** | |
| SJT40TD120H | IGBT | TO-247 | 1200 | 40 | 450 | ±30 | 5 | 1.55 | 1.8 | Active** | |
